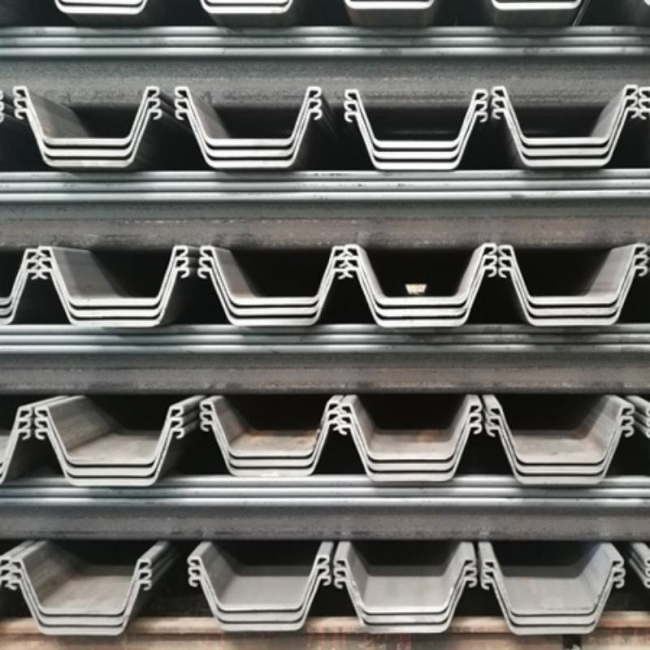

500 SERIES U SHAPE
JIS EN
730110
Model | Size | Each sheet pile | |||||
| Valid width (mm) | Valid height (mm) | Thickness (mm) | Cross-sectional area cm2 | Cross-sectional moment cm4 | Cross-sectional coefficient cm3 | Unit mass kg/m | |
| 500*200 | 500 | 200 | 24.3 | 133.8 | 7960 | 520 | 105 |
| 500*225 | 500 | 225 | 27.6 | 153.0 | 11400 | 680 | 120 |
| Grade | C | Mn | Si | P | S | V | Nb | Ti | Ceq |
| Q295 | ≤0.16 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.15 | ≤0.060 | ≤0.20 | ≤0.40 |
| Q390 | ≤0.20 | ≤1.60 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.20 | ≤0.060 | ≤0.20 | ≤0.44 |
| Q420 | ≤0.20 | ≤1.70 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.20 | ≤0.060 | ≤0.20 | ≤0.46 |
| SYW295 | ≤0.18 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | —— | —— | —— | ≤0.44 |
| SYW390 | ≤0.18 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | —— | —— | —— | ≤0.46 |
| SY295 | —— | —— | —— | ≤0.040 | ≤0.040 | —— | —— | —— | —— |
| SY390 | —— | —— | —— | ≤0.040 | ≤0.040 | —— | —— | —— | —— |
| S270GP | ≤0.27 | —— | —— | ≤0.55 | ≤0.55 | —— | —— | —— | —— |
| S320GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.55 | ≤0.55 | —— | —— | —— | —— |
| S355GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.55 | ≤0.55 | —— | —— | —— | —— |
| S390GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.50 | ≤0.50 | —— | —— | —— | —— |
| Grade | Yield strength | Tensile strength | Elongation |
| Q295 | ≥295 | 390-570 | ≥23 |
| Q390 | ≥390 | 490-650 | ≥20 |
| Q420 | ≥420 | 520-680 | ≥19 |
| SYW295 | ≥295 | ≥490 | ≥17 |
| SYW390 | ≥390 | ≥540 | ≥15 |
| SY295 | ≥295 | ≥490 | ≥17 |
| SY390 | ≥390 | ≥540 | ≥ |
| S270GP | ≥270 | ≥410 | ≥24 |
| S320GP | ≥320 | ≥440 | ≥23 |
| S355GP | ≥355 | ≥480 | ≥22 |
| S390GP | ≥390 | ≥490 | ≥20 |
Model | Size | Each sheet pile | |||||
| Valid width (mm) | Valid height (mm) | Thickness (mm) | Cross-sectional area cm2 | Cross-sectional moment cm4 | Cross-sectional coefficient cm3 | Unit mass kg/m | |
| 500*200 | 500 | 200 | 24.3 | 133.8 | 7960 | 520 | 105 |
| 500*225 | 500 | 225 | 27.6 | 153.0 | 11400 | 680 | 120 |
| Grade | C | Mn | Si | P | S | V | Nb | Ti | Ceq |
| Q295 | ≤0.16 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.15 | ≤0.060 | ≤0.20 | ≤0.40 |
| Q390 | ≤0.20 | ≤1.60 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.20 | ≤0.060 | ≤0.20 | ≤0.44 |
| Q420 | ≤0.20 | ≤1.70 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.20 | ≤0.060 | ≤0.20 | ≤0.46 |
| SYW295 | ≤0.18 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | —— | —— | —— | ≤0.44 |
| SYW390 | ≤0.18 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | —— | —— | —— | ≤0.46 |
| SY295 | —— | —— | —— | ≤0.040 | ≤0.040 | —— | —— | —— | —— |
| SY390 | —— | —— | —— | ≤0.040 | ≤0.040 | —— | —— | —— | —— |
| S270GP | ≤0.27 | —— | —— | ≤0.55 | ≤0.55 | —— | —— | —— | —— |
| S320GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.55 | ≤0.55 | —— | —— | —— | —— |
| S355GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.55 | ≤0.55 | —— | —— | —— | —— |
| S390GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.50 | ≤0.50 | —— | —— | —— | —— |
| Grade | Yield strength | Tensile strength | Elongation |
| Q295 | ≥295 | 390-570 | ≥23 |
| Q390 | ≥390 | 490-650 | ≥20 |
| Q420 | ≥420 | 520-680 | ≥19 |
| SYW295 | ≥295 | ≥490 | ≥17 |
| SYW390 | ≥390 | ≥540 | ≥15 |
| SY295 | ≥295 | ≥490 | ≥17 |
| SY390 | ≥390 | ≥540 | ≥ |
| S270GP | ≥270 | ≥410 | ≥24 |
| S320GP | ≥320 | ≥440 | ≥23 |
| S355GP | ≥355 | ≥480 | ≥22 |
| S390GP | ≥390 | ≥490 | ≥20 |
