U Section Type2 400*100*10.5 Type3 400*125*13.0 Type4 400*170*15.5mm
HONGKUN
73011000
Steel Sheet Pile Description:
1.U steel sheet pile is most common sheet pile with obvious features such as :high intensity, water-proof property and so on. In bridge construction, u steel sheet pile has gradually played an important role and been popular with engineers.
2.Steel sheet pile from our factory owns the high-class quality, forging by the advanced technology.
3.We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness.
400 series steel sheet piles are the most common type of steel sheet piles, which are generally used for general earth support, earthwork and stone works. Due to its high tensile strength and bearing capacity, it is suitable for retaining wall and temporary enclosure works under general soil conditions.
The steel sheet piles have ISO,CE,Singapore,Malaysia certificates,and can be produced according to European and Japanese standards,and the length can be customized.
U-type steel sheet pile advantages:
1.Wide range of selections in terms of geometrical characteristics widening the choice of economically optimized profiles for particular project.
2.Great aptitude for repectitive use.
3.Wide range of section modulus, suitable for various type of contruction purpose.Service-proven to many type of projects,such as premanent structures temporary earth-retaining.
4.Works and tempoary cofferdams,etc.
Steel Sheet Piling Parameters:
| Product Name | Steel Sheet Pile/Piling(U section hot rolled/ cold rolled steel sheet pile) |
| Length | 6,9,12,15,18m as required Max.24m |
| Width | 400-750mm as required |
| Thickness | 6-25mm as required |
| Material | Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect. |
| Shape | U,Z Profiles |
| Steel grade | S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
| Technique | Hot rolled/Cold Formed |
| Surface | Black |
| Standard | ASTM AISI JIS DIN EN GB Etc |
| Tolerance | ±1% |
| MOQ | 100 ton, sample order is also OK |
| Certificate | ISO CE Etc |
| Payment method | T/T, L/C, Western Union,Cash |
| Application | Cofferdam /River flood diversion and control/ Water treatment system fence/Flood protection Wall/ Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/ Breakwater/Weir Wall/Fixed slope/ Baffle wall |
| Package | Standard packaging, can be packaged according to customer requirements |
| Grade | C | Mn | Si | P | S | V | Nb | Ti | Ceq |
| Q295 | ≤0.16 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.15 | ≤0.060 | ≤0.20 | ≤0.40 |
| Q390 | ≤0.20 | ≤1.60 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.20 | ≤0.060 | ≤0.20 | ≤0.44 |
| Q420 | ≤0.20 | ≤1.70 | ≤0.55 | ≤0.040 | ≤0.040 | ≤0.20 | ≤0.060 | ≤0.20 | ≤0.46 |
| SYW295 | ≤0.18 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | -- | -- | -- | ≤0.44 |
| SYW390 | ≤0.18 | ≤1.50 | ≤0.55 | ≤0.040 | ≤0.040 | -- | -- | -- | ≤0.46 |
| SY295 | -- | -- | -- | ≤0.040 | ≤0.040 | -- | -- | -- | -- |
| SY390 | -- | -- | -- | ≤0.040 | ≤0.040 | -- | -- | -- | -- |
| S270GP | ≤0.27 | -- | -- | ≤0.55 | ≤0.55 | -- | -- | -- | -- |
| S320GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.55 | ≤0.55 | -- | -- | -- | -- |
| S355GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.55 | ≤0.55 | -- | -- | -- | -- |
| S390GP | ≤0.27 | ≤1.70 | ≤0.60 | ≤0.50 | ≤0.50 | -- | -- | -- | -- |
| Grade | Yield strength | Tensile strength | Elongation |
| Q295 | ≥295 | 390-570 | ≥23 |
| Q390 | ≥390 | 490-650 | ≥20 |
| Q420 | ≥420 | 520-680 | ≥19 |
| SYW295 | ≥295 | ≥490 | ≥17 |
| SYW390 | ≥390 | ≥540 | ≥15 |
| SY295 | ≥295 | ≥490 | ≥17 |
| SY390 | ≥390 | ≥540 | ≥ |
| S270GP | ≥270 | ≥410 | ≥24 |
| S320GP | ≥320 | ≥440 | ≥23 |
| S355GP | ≥355 | ≥480 | ≥22 |
| S390GP | ≥390 | ≥490 | ≥20 |
Steel Sheet Pile Display:

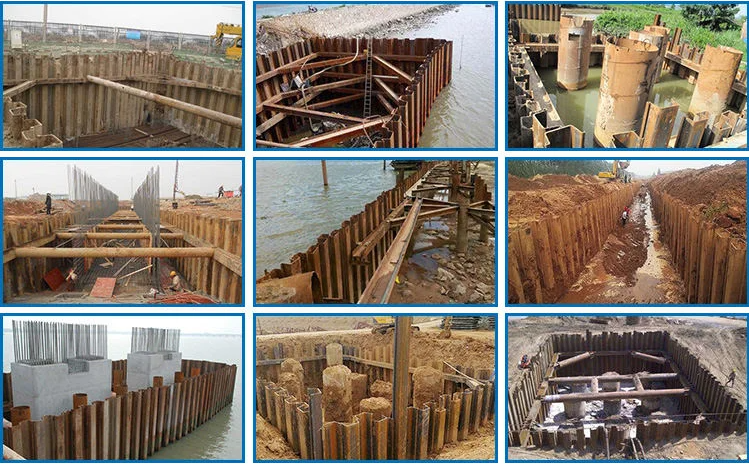

Steel Sheet Pile Application:
Mostly used for quarry wall, revetment ,artifical island etc.
1. Wharf wall, noise isolation wall, etc. Used in hydraulic engineering.
2.Used for wall protection and parking equipment in waterway civil engineering.
3.Used for the control of water conservancy project construction pollution.
Steel Sheet Piling Packing&Shipping:
| Packing | 1:Generally package:Anti-water paper+strapped with min three strapping strips. |
| 2:Standard exporting package:Anti-water paper and plastic+covered by iron sheet+strapped with min three strapping strips. | |
| 3:Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strips+fixed on the iron or wooden pallets by strapping strips. | |
| Shipping | 1:Shipping by containers |
| 2:Shipping by bulk ship |
Whether you need a steel sheet for foundation, retaining wall, marine construction, infrastructure, flood protection, or bulkheads, our product offers exceptional strength and reliability. Its sturdy construction ensures stability and structural integrity, making it an ideal choice for demanding applications.
Invest in our Steel Sheet Pile for a cost-effective and reliable solution that guarantees optimal performance. Enhance your construction projects with this high-quality product, designed to exceed industry standards and deliver exceptional results.
Welcome to establishing business relationship with us!
