First Class Quality Hot Rolled Wide Flange H Section Steel Beam ASTM A36 A572 Structural Steel H/I Beam Q235 SS400 Carbon/Mild Steel/Galvanized H Beam For Construction MS H Shaped Universal Beam

First Class Quality Hot Rolled Wide Flange H Section Steel Beam ASTM A36 A572 Structural Steel H/I Beam Q235 SS400 Carbon/Mild Steel/Galvanized H Beam For Construction MS H Shaped Universal Beam

Our Steel H Beam is made from premium-grade steel, ensuring exceptional strength and long-lasting performance. It is meticulously crafted to meet industry standards, guaranteeing its reliability and safety in various applications.

Quantity:
Material:	A36/A572 GR50/A992/Q235B/Q345B/SS400 Etc.
Standard::	AISI, JIS, ASTM, DIN, BS, GB
Technique::	Hot Rolled
Application:	Industry,Construction,Decoration,Shipbuilding,Brid
Package:	in Bundle with The Steel Strip or Waterproof Film
Length:	3m-12m or as Per Your Request
Quality:	High Quality Guaranteed
Availability:





Inquire Add to Basket

Model:
A36/A572 GR50/A992/Q235B/Q345B/SS400 Etc.
Brand:
HONGKUN
Code:
72163319

Product Description

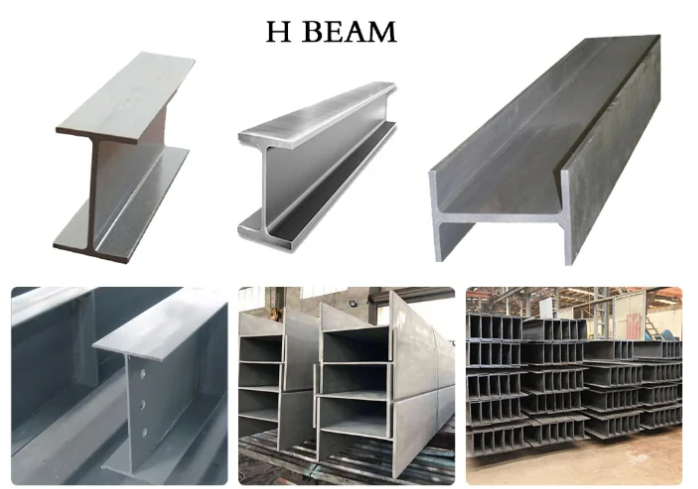

H Beam1

H-section steel is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its section is the same as the English letter "H". Since the various parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance, simple construction, cost saving and light structure in all directions.

The flange of H-shaped steel is parallel or nearly parallel on the inside and outside, and the end of the flange is at a right Angle, so it is named parallel flange I-steel. The thickness of the web of H-shaped steel is smaller than that of ordinary I-beams with the same height of the web, and the width of the flange is larger than that of ordinary I-beams with the same height of the web, so it is also named wide-rim I-beams.

H beam2

H Section Steel Beam Specification:

Product Name	Carbon steel H beam/H Section Beam/Steel Beam/Wide Flange H Beam
Standard	ASTM,JIS,DIN EN10025,GB
Certificate	ISO, SGS ,CE or other third party inspection acceptable.
Material Grade	Q195-Q420 Series,SS400-SS540 Series,S235JR-S355JR Series, ST Series,A36-A992 Series,Gr50 Series
Leg Height	100mm-900mm
Depth	68mm-300mm
Thickness	4.5mm-17mm
Length	1000mm-12000mm
Technique	Hot Rolled
Surface treatment	Bare, black,galvanized,coated,painted or as your request
Application	Industry,Construction,Decoration,Shipbuilding,Bridging,etc.
Advantage	Small MOQ + Superior quality + Competitive price + Fast delivery

H Beam3

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	M	H	B	t 1	t2	r	A
W4 x 4	13	19.3	106	103	7.1	8.8	7.6	24.90
W5 x 5	16	23.8	127	127	6.1	9.1	7.6	30.26
	19	28.1	131	128	6.9	10.9	7.6	35.88
W6 x 4	8.5	13	148	100	4.3	4.9	7.6	16.25
	9	13.5	150	100	4.3	5.5	7.6	17.48
	12	18	153	102	5.8	7.1	7.6	22.99
	16	24	160	102	6.6	10.3	7.6	30.76
W6 x 6	15	22.5	152	152	5.8	6.6	7.6	28.63
	20	29.8	157	153	6.6	9.3	7.6	38.10
	25	37.1	162	154	8.1	11.6	7.6	47.57

W8 x 4	10	15	200	100	4.3	5.2	7.6	19.08
	13	19.3	203	102	5.8	6.5	7.6	24.72
	15	22.5	206	102	6.2	8.0	7.6	28.60
W8 x 5¼	14	21.4	203	134	5.0	6.4	7.6	27.21
	18	26.6	207	133	5.8	8.4	7.6	33.93
	21	31.3	210	134	6.4	10.2	7.6	39.97

W8 x 6½	24	35.9	201	165	6.2	10.2	10.2	45.78
	28	41.7	205	166	7.2	11.8	10.2	53.11
W8 x 8	31	46.1	203	203	7.2	11.0	10.2	58.62
	35	52	206	204	7.9	12.6	10.2	66.52
	40	59	210	205	9.1	14.2	10.2	75.60
	48	71	216	206	10.2	17.4	10.2	91.05
	58	86	222	209	13.0	20.6	10.2	110.5
	67	100	229	210	14.5	23.7	10.2	126.8
W10 x 4	12	17.9	251	101	4.8	5.3	7.6	22.68
	15	22.3	254	102	5.8	6.9	7.6	28.43
	17	25.3	257	102	6.1	8.4	7.6	32.26
	19	28.4	260	102	6.4	10.0	7.6	36.28
W10 x 5¾	22	32.7	258	146	6.1	9.1	7.6	41.73
	26	38.5	262	147	6.6	11.2	7.6	49.17
	30	44.8	266	148	7.6	13.0	7.6	57.10

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	M	H	B	t 1	t2	r	A
W10 x 8	33	49.1	247	202	7.4	11.0	12.7	62.53
	39	58	252	203	8.0	13.5	12.7	74.14
	45	67	257	204	8.9	15.7	12.7	85.38

W10 x 10	49	73	253	254	8.6	14.2	12.7	92.9
	54	80	256	255	9.4	15.6	12.7	102.0
	60	89	260	256	10.7	17.3	12.7	114.0
	68	101	264	257	11.9	19.6	12.7	129.0
	77	115	269	259	13.5	22.1	12.7	146.1

	88	131	275	261	15.4	25.1	12.7	166.9

	100	149	282	263	17.3	28.4	12.7	189.5
	112	167	289	265	19.2	31.8	12.7	212.8
W12 x 4	14	21	303	101	5.1	5.7	7.6	26.83
	16	23.8	305	101	5.6	6.7	7.6	30.37

	19	28.3	309	102	6.0	8.9	7.6	36.06

	22	32.7	313	102	6.6	10.8	7.6	41.83
W12 x 6½	26	38.7	310	165	5.8	9.7	7.6	49.35
	30	44.5	313	166	6.6	11.2	7.6	56.80
	35	52	317	167	7.6	13.2	7.6	66.60
W12 x 8	40	60	303	203	7.5	13.1	15.2	76.03

	45	67	306	204	8.5	14.6	15.2	85.19
	50	74	310	205	9.4	16.3	15.2	94.92
W12 x 10	53	79	306	254	8.8	14.6	15.2	100.5
	58	86	310	254	9.1	16.3	15.2	110.1
W12 x 12	65	97	308	305	9.9	15.4	15.2	123.3

	72	107	311	306	10.9	17.0	15.2	136.2
	79	117	314	307	11.9	18.7	15.2	149.7

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	M	H	B	t 1	t2	r	A
W12 x 12	87	129	318	308	13.1	20.6	15.2	165.2
	96	143	323	309	14.0	22.9	15.2	182.2
	106	158	327	310	15.5	25.1	15.2	200.8
	120	179	333	313	18.0	28.1	15.2	227.7
	136	202	341	315	20.1	31.8	15.2	258.0
	152	226	348	317	22.1	35.6	15.2	288.9
	161	240	353	318	23.0	37.7	15.2	305.8
	170	253	356	319	24.4	39.6	15.2	322.5
	190	283	365	322	26.9	44.1	15.2	360.4
	210	313	374	325	30.0	48.3	15.2	398.9
	230	342	382	328	32.6	52.6	15.2	436.8
	252	375	391	330	35.4	57.2	15.2	477.9
	279	415	403	334	38.9	62.7	15.2	528.4
	305	454	415	336	41.3	68.7	15.2	578.4
W14 x 5	22	32.9	349	127	5.8	8.5	10.2	41.74
	26	39	353	128	6.5	10.7	10.2	49.77
W14 x 6¾	30	44.6	352	171	6.9	9.8	10.2	57.29
	34	51	355	171	7.2	11.6	10.2	64.53
	38	58	358	172	7.9	13.1	10.2	72.18
W14 x 8	43	64	347	203	7.7	13.5	15.2	81.46
	48	72	350	204	8.6	15.1	15.2	91.12
	53	79	354	205	9.4	16.8	15.2	100.8
W14 x 10	61	91	353	254	9.5	16.4	15.2	115.7
	68	101	357	255	10.5	18.3	15.2	128.9
	74	110	360	256	11.4	19.9	15.2	140.3
	82	122	363	257	13.0	21.7	15.2	155.3
W14 x 14½	90	134	356	369	11.2	18.0	15.2	170.6
	99	147	360	370	12.3	19.8	15.2	187.9
	109	162	364	371	13.3	21.8	15.2	206.3

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	M	H	B	t 1	t2	r	A
W14 x 14½	120	179	368	373	15.0	23.9	15.2	228.1
	132	196	372	374	16.4	26.2	15.2	250.4
W14 x 16	145	216	375	394	17.3	27.7	15.2	275.5
	159	237	380	395	18.9	30.2	15.2	301.3
	176	262	387	398	21.1	33.3	15.2	334.2
	193	287	393	399	22.6	36.6	15.2	366.4
	211	314	399	400	24.9	39.6	15.2	399.5
	233	347	407	404	27.2	43.7	15.2	441.8
	257	382	416	406	29.8	48.0	15.2	487.4
	283	421	425	409	32.8	52.6	15.2	537.4
	311	463	435	412	35.8	57.4	15.2	589.7
	342	509	446	416	39.1	62.7	15.2	648.2
	370	551	455	418	42.0	67.6	15.2	702.2
W16 x 5½	26	38.8	399	140	6.4	8.8	10.2	49.86
	31	46.1	403	140	7.0	11.2	10.2	58.99
W16 x 7	36	53	403	177	7.5	10.9	10.2	68.14
	40	60	407	178	7.7	12.8	10.2	75.73
	45	67	410	179	8.8	14.4	10.2	85.88
	50	75	413	180	9.7	16.0	10.2	95.32
	57	85	417	181	10.9	18.2	10.2	108.2
W16 x 10¼	67	100	415	260	10.0	16.9	10.2	126.9
	77	114	420	261	11.6	19.3	10.2	146.0
	89	132	425	263	13.3	22.2	10.2	168.5
	100	149	431	265	14.9	25.0	10.2	190.1
W18 x 6	35	52	450	152	7.6	10.8	10.2	66.34
	40	60	455	153	8.0	13.3	10.2	75.79
	46	68	459	154	9.1	15.4	10.2	87.23
W18 x 7½	41	61	450	189	8.1	10.8	10.2	76.56
	45	67	454	190	8.5	12.7	10.2	85.52
	50	74	457	190	9.0	14.5	10.2	94.62

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	M	H	B	t 1	t2	r	A
W18 x 7½	55	82	460	191	9.9	16.0	10.2	104.5
	60	89	463	192	10.5	17.7	10.2	113.8
	65	97	466	193	11.4	19.1	10.2	123.3
	*66	98	467	193	11.4	19.6	10.2	125.3
	71	106	469	194	12.6	20.6	10.2	134.7
W18 x 11	76	113	463	280	10.8	17.3	10.2	144.1
	86	128	467	282	12.2	19.6	10.2	163.5
	97	144	472	283	13.6	22.1	10.2	184.2
	106	158	476	284	15.0	23.9	10.2	201.1
	119	177	482	286	16.6	26.9	10.2	225.9
	130	193	489	283	17.0	30.5	10.2	246.6
	143	213	495	285	18.5	33.5	10.2	271.0
	158	235	501	287	20.6	36.6	10.2	299.1
	175	260	509	289	22.6	40.4	10.2	331.1
	192	286	517	291	24.4	44.4	10.2	363.8
	211	315	525	293	26.9	48.5	10.2	400.7
	234	349	535	296	29.5	53.6	10.2	444.3
	258	384	545	299	32.5	58.4	10.2	489.3
	283	421	555	302	35.6	63.5	10.2	536.8
	311	464	567	305	38.6	69.6	10.2	590.4
W21 x 6½	44	66	525	165	8.9	11.4	12.7	83.71
	50	74	529	166	9.7	13.6	12.7	95.19
	57	85	535	166	10.3	16.5	12.7	108.0
W21 x 8¼	48	72	524	207	8.9	10.9	12.7	91.09
	55	82	528	209	9.6	13.2	12.7	104.7
	62	92	533	209	10.2	15.6	12.7	117.9
	68	101	537	210	10.9	17.4	12.7	129.2
	73	109	539	211	11.6	18.8	12.7	138.8
	83	123	544	212	13.1	21.2	12.7	157.1
	93	138	549	214	14.7	23.6	12.7	176.1
W21 x 12¼	101	150	543	312	12.7	20.3	12.7	191.9
	111	165	546	313	14.0	22.2	12.7	210.8
	122	182	551	315	15.2	24.4	12.7	231.2

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
	W	M	H	B	t 1	t2	r	A
W21 x 12¼	132	196	554	316	16.5	26.3	12.7	250.4
	147	219	560	318	18.3	29.2	12.7	278.8
	166	248	571	315	19.1	34.5	12.7	315.0
	182	272	577	317	21.1	37.6	12.7	346.0
	201	300	585	319	23.1	41.4	12.7	381.9
	*223	332	593	322	25.4	45.5	12.7	421.8
	*248	369	603	325	28.3	50.5	12.7	471.2
	*275	409	613	327	31.0	55.6	12.7	521.0
	*300	446	623	330	33.5	60.5	12.7	568.8
	*333	496	635	333	37.1	66.5	12.7	631.2
W24 x 7	55	82	599	178	10.0	12.8	12.7	104.2
	62	92	603	179	10.9	15.0	12.7	117.5
W24 x 9	68	101	603	228	10.5	14.9	12.7	129.4

	76	113	608	228	11.2	17.3	12.7	144.6
	84	125	612	229	11.9	19.6	12.7	159.4
	94	140	617	230	13.1	22.2	12.7	178.7
	103	153	623	229	14.0	24.9	12.7	195.5
W24 x 12¾	104	155	611	324	12.7	19.1	16.5	198.8
	117	174	616	325	14.0	21.6	16.5	223.0
	131	195	622	327	15.4	24.4	16.5	249.9
	146	217	628	328	16.5	27.7	16.5	278.4
	162	241	635	329	17.9	31.0	16.5	308.9
	176	262	641	327	19.1	34.0	16.5	334.4
	192	285	647	329	20.6	37.1	16.5	364.4
	207	307	653	330	22.1	39.9	16.5	392.8
	229	341	661	333	24.4	43.9	16.5	434.5
	250	372	669	335	26.4	48.0	16.5	475.1
	279	415	679	338	29.5	53.1	16.5	530.2
	306	455	689	340	32.0	57.9	16.5	580.1
	335	498	699	343	35.1	63.0	16.5	636.2
	370	551	711	347	38.6	69.1	16.5	702.9

Designation	Unit Weight (lbs/ft)	Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)

	W	M	H	B	t 1	t2	r	A
W27 x 10	84	125	678	253	11.7	16.3	15.2	160.0
	94	140	684	254	12.4	18.9	15.2	178.0
	102	152	688	254	13.1	21.1	15.2	194.0
	114	170	693	256	14.5	23.6	15.2	216.4
	129	192	702	254	15.5	27.9	15.2	244.0
W27*14	146	217	695	355	15.4	24.8	15	277
	161	240	701	356	16.8	27.4	15	306
	178	265	706	358	18.4	30.2	15	337
W30 x 10½	90	134	750	264	11.94	15.49	28.0	174.4
	99	147	753	265	13.21	17.02	28.0	192.1
	108	161	758	266	13.84	19.30	28.0	209.0
	116	173	762	267	14.35	21.59	28.0	225.0
	124	185	766	267	14.86	23.62	28.0	239.8
	132	196	770	268	15.62	25.40	28.0	255.1
	148	220	779	266	16.51	29.97	28.0	285.0
W30*15	173	257	773	381	16.6	27.1	17	328
	191	284	779	382	18	30.1	17	362
W33 x 11½	118	176	835	292	13.97	18.80	30.0	228.7
	130	193	840	292	14.73	21.72	30.0	252.2
	141	210	846	293	15.37	24.38	30.0	273.1
	152	226	851	294	16.13	26.80	30.0	293.8
	169	251	859	292	17.02	30.99	30.0	324.4
W36 x 12	135	201	903	304	15.24	20.07	30.0	261.1
	150	223	911	304	15.88	23.88	30.0	290.0
	160	238	915	305	16.51	25.91	30.0	308.1
	170	253	919	306	17.27	27.94	30.0	327.5
	182	271	923	307	18.42	29.97	30.0	350.5
	194	289	927	308	19.43	32.00	30.0	372.3
	210	313	932	309	21.08	34.54	30.0	403.3
	232	345	943	308	22.10	39.88	30.0	444.0

H-Shaped Steel Beam Display:

H Beam details2

H Beam details3

H Beam process

H Beam And I Beam

H Beam Application:

Steel H Beams widely used for various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially those in areas with frequent seismic activities and high-temperature working conditions; large-scale bridges that require large carrying capacity, good cross-section stability, and large spans Heavy equipment; highway; ship skeleton; mine support; foundation treatment and embankment engineering; various machine components.

H Beam application

Carbon Steel H Beam Packing&Shipping:

H beam packing3

H Beam packing1

H Beam packing2

H Beam shipping

H beam shipping1

H Beam shipping2

Invest in our Steel H Beam today and experience the highest level of quality, reliability, and performance. Order now and take advantage of our competitive prices and fast shipping!

Any questions or requirements,welcome to inquiry us.
