| Quantity: | |
|---|---|
DX51D, DX52D, DX53D, SGCC, SGCH, CGCC etc.
Hongkun
7210700000
The galvanized color-coated coil is to prevent the surface of the steel plate from corroding to prolong its service life, and a layer of metal zinc is plated on the surface of the steel plate.
According to production and processing methods, it can be divided into 1) Hot dip galvanized steel coil. The sheet is in the molten zinc bath with a layer of zinc flakes attached to its surface. At present, the continuous galvanizing process is mainly used, that is, the steel plate is continuously rolled in the melt galvanizing tank made of galvanized steel plate; (2) Alloying of galvanized steel. This kind of steel coil is made by hot dip method, but after grooving, it is heated to a temperature of about 500 ℃ immediately to form a zinc-iron alloy film. This galvanized sheet has good coating and weldability.
| Material | Q195, SGCC, SGCH, DX51D / DX52D/ DX53D/ S250,280,320GD |
| Techinical standard | JIS 3302 / ASTM A653 / DIN1716/ASTM A525/EN10143,etc. |
| Thickness | 0.12 -- 5.0mm |
| Width | Narrow coils: 30~600mm Medium coils: 600~900mm 500/650/726/820/914/1000/1200/1219/1220/1250mm |
| Basic Coil | Hot-dipped galvanized / Alu-zinc Coils |
| Top side | 5um + 13~20microns |
| Back side | 5~8microns / 5+10microns |
| Color | RAL numbers or customers samples color |
| Zinc coating | 60 -- 275G/M2 |
| Coil ID | 508mm / 610mm |
| Coil weight | 3 -- 8MT |
| Package | Properly packed for ocean freight exportation in 20" containers |
| Application | General service, home appliances, Industry, Decoration, Construction, Car, Appliance of daily life, Roof etc. |

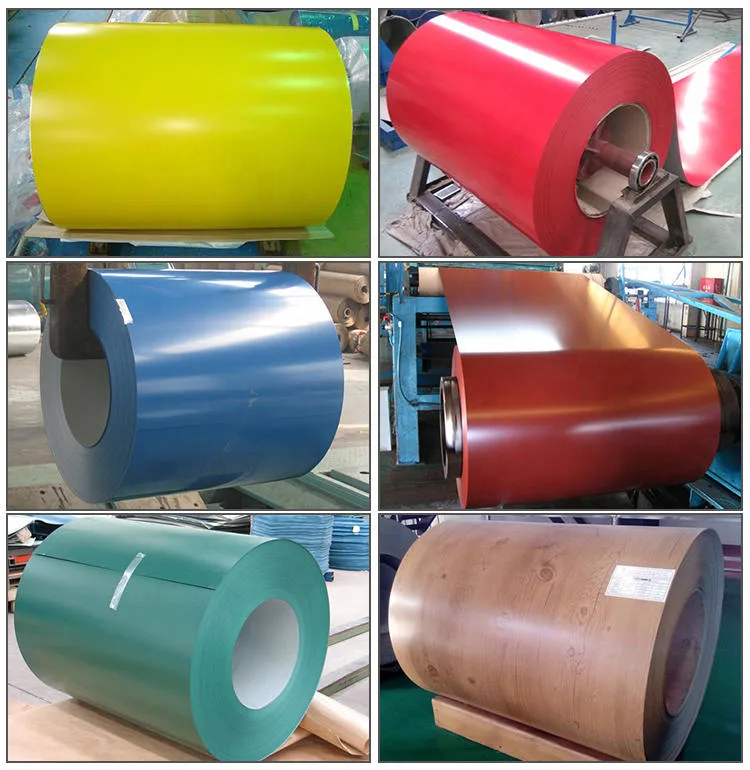

Detail Photos
Product Application
Packaging&Shipping
