| Material: | |
|---|---|
| Zinc Coating Weight: | |
| Thickness: | |
| Widht: | |
| Length: | |
| Paint Thickness: | |
| Production Capacity: | |
| Quantity: | |
FX28-207-828,FX23-183-1100,FX27-190-950 Etc.
HONGKUN
72104100.00
Corrugated steel roof tile, also known as: color pressure tile,is made of color coated steel plate,by rolling cold bending into a variety of wave type of pressure plate.
It is suitable for industrial and civil buildings, warehouses, special buildings, large span steel structure housing roof, wall and interior and exterior wall decoration, has the characteristics of light weight, high strength, rich color and lustre, convenient and fast construction, anti-seismic, fire prevention, rainproof, long life, maintenance free, has been widely promoted and applied.
1.Color Coated Corrugated Roofing Sheet Brief Introduction
It is proceeding by the chemistry degrease and electroanalysis with the cold rolled steel coil and sheet, clean the oils on the surface of steel, sufficiently heated to the proper temperature for zinc coating, pass by level up, strain rectify,and then passivation or annoit etc.
2. Prepainted Corrugated Roofing Sheet Main Features
1) Protects against corrosion in air and water, and has allowed corrugated metal roofing to become one of the most durable and withstanding roofing materials available.
2) Has features of easy installation, high strength, low in costs, durable and nice appearance.
3. PPGI Corrugated Roofing Sheet Technical Processing
Hot rolled steel coil -->Cold rolled- >Hot dipped galvanized/ galvalume/painted- > Corrugated-->Packing
4. Colorful Corrugated Roofing Sheet Quality Control
Strict procurement process---skillful technical workers---final products inspection (resistance to corrosion,salt spray
test,exposure test,machinability,thermal resistance)---standard packing
| Steel Grade | DX51D,SGCC,SPCC,S350,G550.etc |
| Thickness | 0.12mm--5.0mm |
| Effective Width (after corrugation) | 665mm, 750mm, 815mm, 840mm, 900mm ,925mm,1020mm, 1025mm, 1050mm ,etc |
| Base Metal | Galvanized/galvalume/ Aluzinc /prepainted (PPGI,PPGL) Steel Sheet |
| Zinc coating | Z30-275gsm,AZ30-180gsm |
| Coating type | PE,SMP,PVDP, HDP |
| Painting Type | 2/2 2/1 |
| Lenght | Generally 1830, 2440, 3000, 3660mm, any length can be customized according to the transportation,generally less than 11.8m |
| Delivery | Within 7~15 working days after receiving deposit |
| Packing | Export standard seaworthy packing. Waterproof paper+steel sheet+bundle with steel strips(3-4pcs) |
| Normal Roof shape | Wave shape, T shape |
| Surface Treatment | Oiled (O), Chromium (C),Phosphating (P), Spinpass Resistant to Fingerprints(AFP) |
Type | Effective Width/Full Width(mm) | Feeding Width(mm) | Thickness(mm) |
FX28-207-828 | 828/935 | 1000 | 0.1-0.8 |
FX23-183-1100 | 1100-1180 | 1250 | 0.1-0.8 |
FX27-190-950 | 950/1040 | 1200 | 0.1-0.8 |
FX35-185-740 | 740/800 | 960 | 0.1-0.8 |
FX30-152-760 | 760-820 | 980 | 0.1-0.8 |
FX25-210-630 | 630/680 | 750 | 0.1-0.8 |
FX25-210-840 | 840/890 | 1000 | 0.1-0.8 |
FX35-125-750 | 750/820 | 1000 | 0.1-0.8 |
FX50-410-820 | 820/840 | 1000 | 0.1-0.8 |
FX75-200-600 | 600/650 | 1000 | 0.1-0.8 |
FX76-150-688 | 688/750 | 1000 | 0.1-0.8 |
FX15-225-900 | 900/940-950 | 1000 | 0.1-0.8 |
FX28-205-820 | 820/910 | 1000 | 0.1-0.8 |

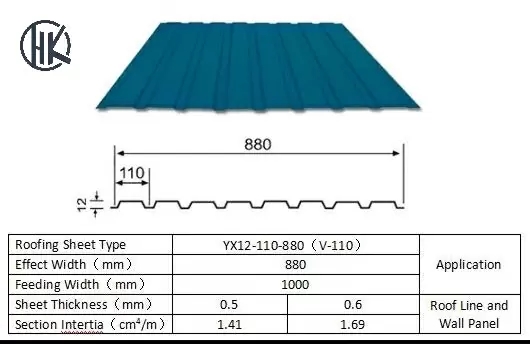

FX12-110-880 | 880/900-910 | 1000 | 0.1-0.8 |
FX-25-205-1025 | 1025/1100 | 1200 | 0.1-0.8 |
It mainly used in the building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings.
1. Packing: Three layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock and with inner coil sleeve.
2. Delivery: In 20ft/40ft container or bulk ship by sea or by train or truck.
1.Production according to customers'requirements
2.Production under ISO9001-2008 Quality System
3.Easy to be installed as light weight
4.Our products are recyclable materials
5.The less construction period, the more using time.
6.Paint your logo for free
7.Factory Direct Sales, Quality Assurance
8. Local Storage, Convenient Transportation
9. Professional Team, Professional after-sales service
10. After you choose us
1).We will count cheapest shipping cost and make invoice at once.
2).Making the production plan, finish the production as soon as possible.
11. After-sale service
1). We are very glad that customer give us some suggestion for price and products.
2). If any question,please contact with us freely by E-mail or Phone.
Please feel free to leave us message if you have any question about us and our products.
