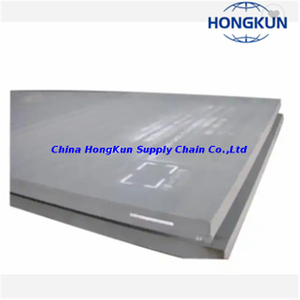

Ship plate, or shipbuilding plate, is a specialized steel plate designed for constructing marine vessels and offshore structures. These plates are produced to meet stringent standards that ensure the safety, durability, and performance of ships under various environmental conditions. The primary standards governing these materials are ASTM A131 and the American Bureau of Shipping (ABS) certifications.
Ship plates are categorized into two main types based on their strength and impact resistance:
Ordinary Strength Steel Plates: These are used for ships operating in mild climates.
High Strength Steel Plates: These are designed for vessels operating in more demanding conditions, such as colder climates or areas with higher stress.
These grades are primarily used for ships operating in moderate climates and are characterized by their yield strength and impact resistance at specific temperatures:
Grade A: Yield strength of 34 ksi (235 MPa), with a tensile strength range of 58–75 ksi (400–520 MPa).
Grade B: Similar to Grade A but with slightly higher impact resistance.
Grade D: Yield strength of 34 ksi (235 MPa), with a tensile strength range of 58–75 ksi (400–520 MPa).
Grade E: Yield strength of 34 ksi (235 MPa), with a tensile strength range of 58–75 ksi (400–520 MPa).
These grades are suitable for constructing vessels that do not face extreme environmental conditions.
These grades offer higher yield and tensile strengths, making them suitable for ships operating in harsher conditions:
AH36: Yield strength of 51 ksi (355 MPa), with a tensile strength range of 71–90 ksi (490–620 MPa).
DH36: Yield strength of 51 ksi (355 MPa), with a tensile strength range of 71–90 ksi (490–620 MPa).
EH36: Yield strength of 51 ksi (355 MPa), with a tensile strength range of 71–90 ksi (490–620 MPa).
FH36: Yield strength of 51 ksi (355 MPa), with a tensile strength range of 71–90 ksi (490–620 MPa).
These grades are essential for constructing vessels that must withstand higher stresses and harsher environmental conditions.
The chemical composition of ship plates varies depending on the grade, but generally includes elements such as carbon (C), manganese (Mn), silicon (Si), phosphorus (P), sulfur (S), and aluminum (Al). The specific content of these elements influences the steel's strength, weldability, and resistance to corrosion.
Mechanical properties like yield strength, tensile strength, and elongation are critical in determining the suitability of a ship plate for specific applications. For instance, higher-strength grades like AH36 and EH36 are designed to withstand greater stresses and are essential for constructing large vessels and offshore structures.
Ship plates are used in various parts of a vessel, including:
Hull Structures: The main body of the ship, requiring high-strength materials to withstand water pressure and impacts.
Decks: The flat surfaces of the ship, often exposed to harsh weather conditions.
Bulkheads: Vertical partitions that divide the ship into compartments, enhancing structural integrity.
Hatch Covers: Movable covers that seal the openings of cargo holds.
Frames and Stiffeners: Structural elements that provide support and maintain the shape of the ship.
The choice of ship plate grade depends on the specific requirements of each component and the environmental conditions the vessel will encounter.
Various classification societies set standards for ship plates to ensure the safety and reliability of vessels:
American Bureau of Shipping (ABS): Provides certifications for various grades of ship plate, including AH36, DH36, EH36, and FH36.
Lloyd's Register (LR): Offers certifications for steel plates used in shipbuilding.
Det Norske Veritas (DNV): Sets standards for materials used in offshore and marine constructions.
China Classification Society (CCS): Provides certifications for ship plates used in vessels registered in China.
Certification from these societies ensures that the ship plates meet the required standards for strength, durability, and performance.
Understanding the different grades of ship plate is crucial for selecting the appropriate material for shipbuilding and offshore construction. Factors such as yield strength, tensile strength, impact resistance, and environmental conditions play a significant role in this selection process. By adhering to the standards set by classification societies and selecting the appropriate grade, manufacturers can ensure the safety, durability, and performance of their vessels.
