When selecting materials for construction or manufacturing, the choice between weathering steel plates and normal steel plates often arises. Both have distinct properties, applications, and long-term performance characteristics. Understanding these differences is critical for engineers, architects, and project managers aiming to optimize durability, cost, and sustainability. This article explores the key distinctions between weathering steel and normal steel, focusing on composition, performance, applications, and trends shaping their use in modern industries.

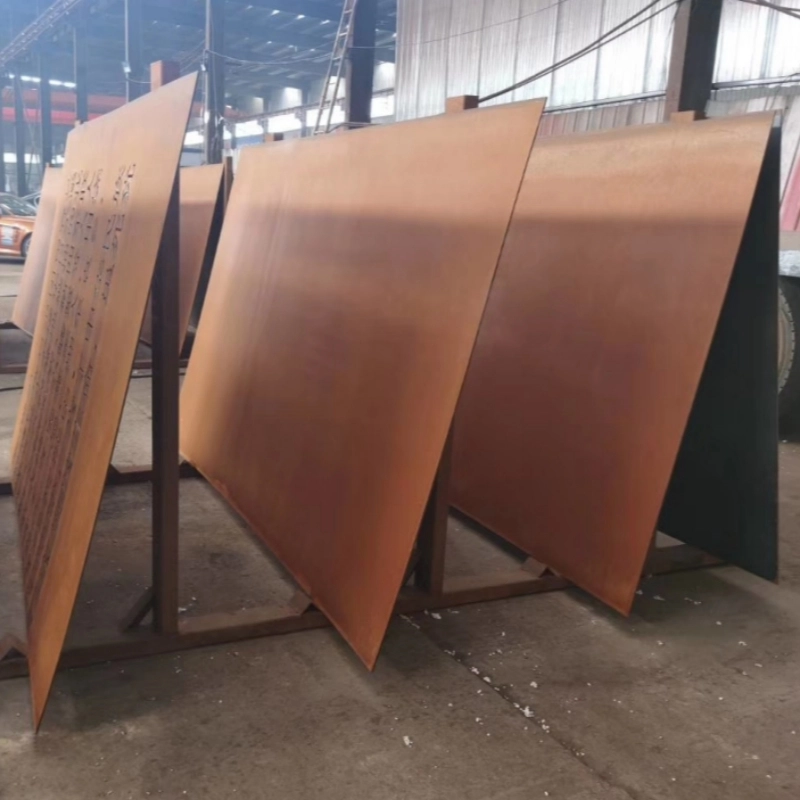

Weathering steel plates are high-strength, low-alloy steels designed to develop a protective rust-like layer (patina) when exposed to weather. This patina prevents further corrosion, eliminating the need for painting or coatings. Common grades include ASTM A588 (Grades A, B, K) and COR-TEN.
Normal steel plates, such as ASTM A36 or A572, are carbon steels without specialized alloying elements. They lack inherent corrosion resistance and require protective coatings (e.g., paint, galvanization) to prevent rust in outdoor environments.
The fundamental distinction lies in their chemical makeup. Weathering steel plates contain alloying elements that enable atmospheric corrosion resistance, while normal steel relies primarily on iron and carbon.
| Element | Weathering Steel Plate (%) | Normal Steel Plate (%) |
|---|---|---|
| Carbon (C) | 0.10–0.22 | 0.25–0.30 |
| Copper (Cu) | 0.25–0.55 | ≤0.20 |
| Chromium (Cr) | 0.40–1.25 | ≤0.30 |
| Nickel (Ni) | 0.12–0.65 | ≤0.30 |
| Phosphorus (P) | 0.01–0.04 | ≤0.04 |
Key Takeaway: The addition of copper, chromium, and nickel in weathering steel plates catalyzes the formation of a stable, self-healing patina. Normal steel lacks these elements, making it vulnerable to oxidation.
| Property | Weathering Steel Plate | Normal Steel Plate |
|---|---|---|
| Yield Strength (MPa) | 345–690 | 250–350 |
| Tensile Strength (MPa) | 485–825 | 400–550 |
| Elongation (%) | 18–22 | 15–20 |
| Impact Resistance | Excellent (at low temps) | Moderate |
Weathering steel plates outperform normal steel in strength and toughness, especially in environments with cyclic loading (e.g., bridges).
Weathering Steel: Forms a dense, adherent patina that slows corrosion rates to 1/4th of normal steel. Lifespan exceeds 50 years in moderate climates.
Normal Steel: Rusts continuously, leading to structural weakening. Without coatings, lifespan drops to 10–15 years outdoors.
Bridges and Highways (e.g., ASTM A588 Grade K for coastal bridges).
Architectural Facades (rustic aesthetics without paint).
Railway Wagons and Shipping Containers.
Sculptures and Public Art (e.g., Chicago’s Cloud Gate).
Indoor Structural Frames (beams, columns).
Automotive Chassis (with galvanization).
Temporary Construction (cost-sensitive projects).
Machinery Parts (where coatings are feasible).
| Factor | Weathering Steel Plate | Normal Steel Plate |
|---|---|---|
| Material Cost | 20–30% Higher | Lower |
| Maintenance Cost | Negligible (no paint) | High (repainting every 5–7 years) |
| Lifespan (Outdoors) | 50+ Years | 15–20 Years (with maintenance) |
| Total Cost (20 Years) | $10,000 | 15,000–20,000 |
Example: A 2022 study by the National Bridge Institute found that using weathering steel plates saved 40% in lifecycle costs for rural bridges compared to painted normal steel.
Weathering Steel: Reduced emissions due to eliminated paint (which contains VOCs) and fewer replacements.
Normal Steel: Higher CO2 from frequent recoating and material replacement.
Both steels are 100% recyclable, but weathering steel plates contribute to circular economies by lasting longer, reducing mining demands.
Projects targeting LEED or BREEAM certifications increasingly use weathering steel plates to minimize environmental disruption.
Manufacturers now blend weathering steel alloys with stainless steel (e.g., ASTM A606) for coastal infrastructure, enhancing salt resistance.
3D printing and laser cutting enable complex designs in weathering steel plates, popular in avant-garde architecture.
Consider these factors:
Environment: Coastal, industrial, or rural? Weathering steel excels in humid, corrosive settings.
Aesthetics: Desire a rusted look? Weathering steel eliminates painting.
Budget: Higher upfront cost vs. long-term savings.
Regulations: Check local codes (e.g., ASTM A588 compliance for bridges).
This urban park used weathering steel plates for its walkways and railings. Benefits included:
Zero maintenance over 15+ years.
Aesthetic integration with the industrial heritage.
30% cost savings versus painted steel alternatives.
The choice between weathering steel plates and normal steel plates hinges on balancing corrosion resistance, lifecycle costs, and project goals. While normal steel suits short-term, indoor applications, weathering steel plates offer unparalleled durability and sustainability for exposed structures. As industries prioritize eco-friendly solutions, the demand for weathering steel is poised to grow, driven by innovations in alloy technology and green construction practices.
By understanding these differences, stakeholders can make informed decisions that align with both engineering requirements and environmental stewardship—ensuring their projects stand resilient against time and the elements.
