The maritime industry relies on specialized materials to ensure the safety, durability, and efficiency of vessels navigating harsh marine environments. Among these materials, shipbuilding plate stands out as a cornerstone of modern ship construction. Designed to withstand corrosion, extreme temperatures, and mechanical stress, shipbuilding plates are engineered to meet stringent international standards. This article explores the types, properties, certifications, and innovations in shipbuilding plate technology, providing a comprehensive guide to their role in marine engineering.

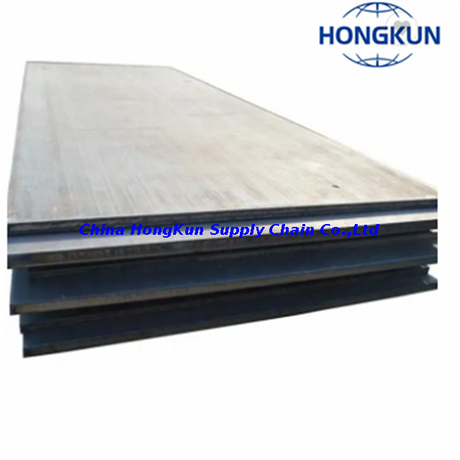

A shipbuilding plate is a high-strength steel plate specifically designed for constructing ships, offshore platforms, and marine structures. These plates are manufactured to endure saltwater corrosion, heavy loads, and dynamic forces while maintaining structural integrity. Key characteristics include:
High tensile strength: Resists deformation under stress.
Corrosion resistance: Protects against saltwater and atmospheric degradation.
Weldability: Ensures seamless integration into complex ship components.
Shipbuilding plates are typically produced from carbon steel, low-alloy steel, or stainless steel, with grades such as AH36, DH36, and EH36 dominating high-stress applications.
Shipbuilding plates are classified based on strength, toughness, and certification standards. Below is a breakdown of common categories:
Yield strength: ≥235 MPa.
Grades: A, B, D, E.
Applications: Hulls, decks, and non-critical structural parts.
Features: Cost-effective but limited to moderate stress environments.
Yield strength: 315–460 MPa.
Grades: AH32/36/40, DH32/36/40, EH32/36/40.
Applications: Ice-class vessels, naval ships, and offshore platforms.
Features: Enhanced toughness and reduced thickness for weight savings.
Yield strength: >460 MPa.
Grades: EH40, FH40, EH47.
Applications: Polar exploration ships, deep-sea drilling rigs.
Features: Exceptional low-temperature toughness and fatigue resistance.
Marine environments demand steel plates with superior anti-corrosion properties. Coatings like anti-rust paint or alloying elements (e.g., chromium, nickel) are used to combat saltwater exposure.
Ease of welding is critical for assembling ship components. Shipbuilding plates with low carbon equivalents (CE) minimize cracking risks during welding. For example, AH36 plates require preheating only for joints thicker than 30mm.
Grades like DH36 and EH36 are tested for impact resistance at temperatures as low as -40°C, ensuring performance in Arctic conditions.
High-strength grades (e.g., AH36) allow thinner steel plates without compromising strength, reducing vessel weight and improving fuel efficiency.
Shipbuilding plates must comply with certifications from international classification societies. Below are key regulatory bodies:
| Classification Society | Common Grades | Certification Focus |
|---|---|---|
| ABS (American Bureau of Shipping) | ABS A, AH36, DH36 | Structural integrity, weldability |
| DNV (Det Norske Veritas) | DNV AH36, EH40 | Fatigue resistance, low-temperature toughness |
| LR (Lloyd’s Register) | LR DH36, EH32 | Corrosion resistance, mechanical testing |
| CCS (China Classification Society) | CCS A, EH36 | Compliance with Asian maritime standards |
Certification ensures steel plates meet safety, performance, and environmental regulations.
Steel coils are a foundational material in producing shipbuilding plates. The process involves:
Melting & Alloying: Raw iron ore is combined with elements like manganese, nickel, and titanium.
Casting: Molten steel is formed into slabs or steel coils.
Hot Rolling: Steel coils are heated and rolled into plates of specified thickness (5–150 mm) .
Heat Treatment: Processes like normalization or thermomechanical control (TMCP) enhance strength and toughness.
AH36 and DH36 plates form the hull’s outer shell, providing impact resistance and buoyancy.
Steel plates with anti-slip surfaces ensure crew safety on decks.
EH36 grades withstand high-pressure environments in oil rigs.
Engine components and propellers use corrosion-resistant stainless steel plates.
TMCP steel plates eliminate the need for preheating during welding, reducing production costs and improving efficiency. Grades like EH36 and EH40 are produced using this method.
Recycled steel coils are increasingly used to produce shipbuilding plates, cutting carbon emissions by 30%.
Alloys with embedded sensors or self-healing properties are emerging for real-time structural health monitoring.
Automakers and shipbuilders collaborate to adopt thinner, high-strength steel plates for fuel savings.
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Impact Test Temp. | Common Applications |
|---|---|---|---|---|
| A | ≥235 | 400–490 | 20°C | Coastal vessels, riverboats |
| AH36 | ≥355 | 490–620 | 0°C | Cargo ships, oil tankers |
| DH36 | ≥355 | 490–620 | -20°C | Ice-class vessels, naval ships |
| EH36 | ≥355 | 490–620 | -40°C | Arctic exploration, LNG carriers |
Cost Constraints: High-alloy grades (e.g., EH40) are expensive due to nickel and molybdenum content.
Welding Complexity: Thick plates require specialized techniques to prevent cracking.
Weight Limitations: Heavier than aluminum, limiting use in aviation-inspired designs.
Shipbuilding plates are the backbone of marine engineering, offering unmatched strength, corrosion resistance, and adaptability. From AH36-grade hulls to EH36 Arctic explorers, these steel plates ensure vessels meet the demands of modern maritime challenges. Innovations like TMCP and eco-friendly steel coil recycling are driving the industry toward sustainability and efficiency.
By understanding certifications, material properties, and emerging trends, shipbuilders can select the optimal shipbuilding plate for their projects, balancing performance, cost, and environmental impact. As technology evolves, these plates will continue to redefine the boundaries of marine construction, ensuring safer and more resilient ships for the future.
