ASTM A106/A53/API5L
HONGKUN
73041910
Carbon Steel Pipe Introduction:
Our high-quality Steel Pipe & Tube, perfect for various industrial applications. Made from seamless carbon steel, this pipe offers exceptional durability and strength, ensuring long-lasting performance. Its seamless construction eliminates the risk of leaks or weak spots, providing a reliable solution for transporting fluids or gases. The steel pipe's corrosion-resistant properties make it suitable for both indoor and outdoor use, even in harsh environments. With its precise dimensions and smooth surface, it allows for easy installation and efficient flow of materials. This versatile pipe is ideal for industries such as oil and gas, construction, and manufacturing.
Welded steel pipe, also known as welded pipe, is a steel pipe made of steel plate or strip steel after crimping and welding, and the length is generally 6 meters. Welded steel pipe has simple production process, high production efficiency, many varieties and specifications, and less equipment investment, but the general strength is lower than that of seamless steel pipe.
Carbon Steel Tube Specification:
| Product name | Seamless Steel Pipe / Seamless Steel Tube |
| Standard | AISI ASTM GB JIS |
| Grade | API A106 GR.B A53 Gr.B seamless steel pipe / ASTM A106 Gr.B A53 Gr.B steel tube, X42,X46,X52,X60,X65,X70,X80,X100 API5L
|
| Length | 5.8m 6m Fixed, 12m Fixed, 2-12m Random |
| Place of Origin | China |
| Outside Diameter | 1/2'--24' |
| 21.3mm-609.6mm | |
| Technique | 1/2'--6': hot piercing processing technique |
| 6'--24' : hot extrusion processing technique | |
| Usage /Application | Oil pipe line, Drill pipe, Hydraulic pipe, Gas pipe, Fluid pipe, Boiler pipe,Conduit pipe, Scaffolding pipe pharmaceutical and ship building etc. |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Alloy Or Not | Is Alloy |
| Delivery Time | 8-14 days |
| Material | API5L,Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53Gr.A&B,ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2,SY/T5037, SY/T5040 STP410,STP42 |
| End | Bevel end(>2"), Plain (≤2"),with plastic cap, with screwed and socket |
| Surface | Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation |
| Packing | Standard Sea-worthy Packing |
| Delivery Term | CFR CIF FOB EXW |
| Descriptions | Grades | Standard | Specification (OD*WT)mm | Usage |
| Structural steel pipe | 20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045. | GB/T8162-2008, ASTM A29/A29M-2015 | 6-1020*1.5-100 | For commom structure |
| Fluid steel pipe | 10#, 20#, ASTM A106, A210, A53, 16Mn, Q345A.B.C.D.E, Q295B.C.D.E | GB/T8163-2008 | 8-630*1.0-40 | Fluid feeding |
| High pressure boiler pipe | 20G, 15MnG, 20MnG, 15CrMoG, 12Cr1MoVG, St35.8, St45, SA106b, SA106c, SA210a, SA210c, A335P2, P11, P12, P22, P91, P92, A213 T2,T9, T11, T12, T22, T23, T91 | GB/5310-2008, ASTM A 106-99, DIN 17175-79 | 14-630*2-80 | Temperature-resistant seamless steel pipe far high-pressure boiler |
| Oil casing pipe | API SPEC 5CT J55, K55, N80, L80, C90, C95, P110 | API SPEC 5CT, SY/T6194-96, GB/T222-84, | 10-530*1.5-36 | Boiler pipes for refinery,heatexchangeing pipes,seamless steel pipes for pipeline |
| Pipeline | API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTM A53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245 | API SPEC 5L, ISO 3183, GB/T 9711 | 60-630*1.5-40 | Carrying gas,water or oil in the industries of petroleum and natural gas |
| Alloy steel pipe | 4140, 42CrMo, 32CrMo, 15CrMo, Cr5Mo, 13CrMo44, 12Cr1MoV P22 T91,P91,P9, T9, Wb36 | GB5310-95, GB9948-88, ASTM A335/A335M, ASTM A213/213M, DIN17175-79, JISG3467-88, JISG3458-88 | 16-824*2-100 | The seamless steal pipes features resistance to high presure,high/low temperature and corrosion ano is used in the industries of petroleum, chemical engineering and. Electric pwer as well as boiler |
| Hydraulic prop pipe | 20#, 45#, 27SiMn, 30CrMoSiA | GB/T17396-2009 | 70-377*9-40 | Coal mine hydraulic support and pillar cylinder, column, can also be used for other hydraulic cylinder, column |
ASTM A53 Carbon Steel Pipe & Tube
ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.
A53 pipe comes in three types (F, E, S) and two grades (A, B).
A53 Type F is manufactured with a furnace butt weld or may have a continuous weld (Grade A only)
A53 Type E has an electric resistance weld (Grades A and B)
A53 Type S is a seamless pipe and found in Grades A and B)
A53 Grade B Seamless is our most polar product under this specification and A53 pipe is commonly dual certified to A106 B Seamless pipe.
ASTM A53 seamless steel pipe chemical composition:
| Grade | Chemical Composition (%) Max. | ||||||||
| C | Mn | P | S | Cu | Ni | Cr | Mo | V | |
| A | 0.25 | 0.95 | 0.05 | 0.045 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| B | 0.30 | 1.20 | 0.05 | 0.045 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
ASTM A53 seamless steel pipe Mechanical Properties:
| Grade | Mechanical Properties | |
| Tensile Strength (Mpa) | Yield Strength (Mpa) | |
| A | ≥48,000 (≥330) | ≥30,000 (≥205) |
| B | ≥60,000 (≥415) | ≥35,000 (≥240) |
ASTM A53 steel pipe of size range
| NPS | OD | W T | |||||||||||
| INCH | MM | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 |
| 1/2″ | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | |||||
| 3/4″ | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | |||||
| 1″ | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | |||||
| 1.1/4″ | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | |||||
| 1.1/2″ | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | |||||
| 2″ | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | |||||
| 2.1/2″ | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | |||||
| 3″ | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | |||||
| 3.1/2″ | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | ||||||
| 4″ | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | ||||
| 5″ | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | |||||
| 6″ | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | |||||
| 8″ | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 |
| 10″ | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 |
| 12″ | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 |
| 14″ | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
| 16″ | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
| 18″ | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
| 20″ | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
| 22″ | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 24″ | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
| 26″ | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | ||||||||
| 28″ | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | |||||||
ASTM A106 Seamless carbon steel tube
ASTM A106 pipe (also covered in ASME specifications as S/A 106) is the standard specification for seamless carbon steel pipe for high-temperature service. Most common uses are in refineries and plants when gasses or fluids are transported at high temperatures and pressures.
ASTM A106 Gr. B seamless steel pipe is a kind of low carbon steel widely used in petroleum, chemical industry and boiler industry. The material has good mechanical properties.
Description
1. Standards: ASTM A106 (ASME SA106)
2. Products mainly used: apply to bending, curling and similar forming process.
3. The main products of steel / steel grade: Gr.A, Gr.B, Gr.C.
4. Specifications: diameter: 10.3 to 114.3 mm thickness: 0.8 to 12 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe.
5. Chemical composition and mechanical properties
6. JIS Number and Corrensponding Foreign Standards
Chemical Composition And Mechanical Properties:
| Grade | Chemical Compositions | |||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V | |
| A106-A | ≤0.25 | 0.27-0.93 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| A106-B | ≤0.30 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| A106-C | ≤0.35 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| Grade | Mechanical Properties | |||||||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||||||||
| A106-A | ≥330 | ≥205 | 30 | |||||||
| A106-B | ≥415 | ≥240 | 30 | |||||||
| A106-C | ≥485 | ≥275 | 30 | |||||||
ASTM A106 Grade A, Grade B, Grade C seamless carbon steel pipes as below conditions:
Standard: ASTM A106, Nace, Sour service.
Grade: A, B, C
Range of OD outer diameter: NPS 1/8 inch to NPS 20 inch, 10.13mm to 1219mm
Range of WT wall thickness: SCH 10, SCH 20, SCH STD, SCH 40, SCH 80, to SCH160, SCHXX; 1.24mm up to 1 inch, 25.4mm
Range of length: 20ft to 40ft, 5.8m to 13m, single random lengths of 16 to 22ft, 4.8 to 6.7m, double random length with average 35ft 10.7m
Ends procession: Plain end, beveled, threaded
Coating: Black paint, varnished, epoxy coating, polyethylene coating, FBE and 3PE, CRA Clad and Lined.
Carbon Steel Seamless And Welded Pipe/Tube Display:
Steel Pipe Test:
We will control the quality from part of material steel pipe, each pipe produced will be have it is own identify label, quality will check the chemical component and physical property and then provide material test certificate. Size dimension will be checked and show pictures to customer to guarantee all goods will be meet requirement.
MS Steel Pipe/Tube Application:
Carbon steel pipe and tube are used in high-pressure conditions. They are highly resistant to shock and vibration, making it ideal to transport fluids.
Carbon steel pipes are widely used in a number of industries, such as construction material, buidlings, bridges, transporting water and sewage, oil and gas industries, boiler and condenser tubes, high-pressure applications, and chemical processing.
- Construction material / bridges
- Transporting water and sewage
- Oil and gas industries
- Boiler and condenser tubes
- High-pressure applications
- Chemical processing

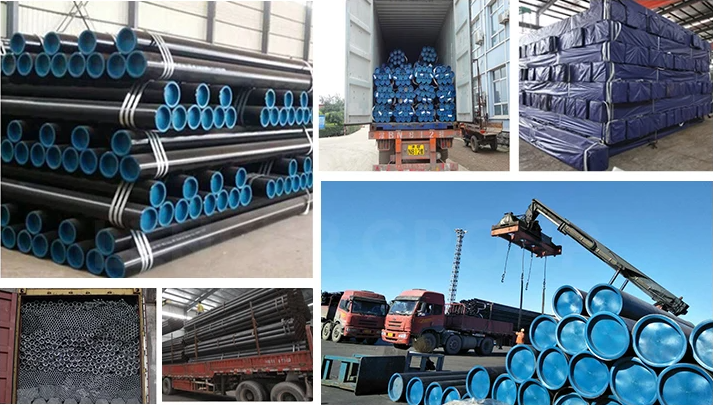

Mild Steel Pipe/Tube Packing&Shipping:
1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.
2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
3) Trade terms: FOB/CIF/CFR
4) Shipping port: Qingdao/Tianjin/Shanghai
5) Shipment: A: Length: ≤6m, loaded in 20GP Container. B: Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm); Size of 40GP Container (inside:12032*2352*2393mm); Size of 40HQ Container (inside:12032*2352*2698mm).
6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size:15-30days custom made for you.
Whether you require it for structural purposes or fluid transportation, our Steel Pipe & Tube is the perfect choice. Order now and experience its superior quality and reliability!
Any requirements for our steel pipe,welcome to inquiry us at any time.
