Home » Products » Steel Profile » Angle Iron » EN10056 Structural Steel Unqual Leg Angles

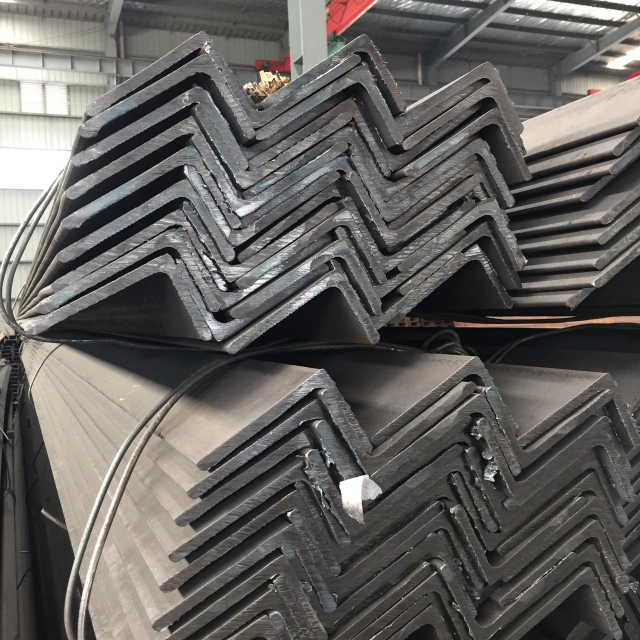

EN10056 Structural Steel Unqual Leg Angles

EN10056 Structural Steel Unequal Angles are angle-shaped steel sections with two legs of different lengths used in construction. These angles are mainly made of high-strength structural steels and have a rectangular cross section. EN10056 angles are widely used in building structures, bridge construction, tunnels, mining machinery, and other fields. These angles have good strength, stiffness, impact resistance, and fatigue resistance, and are also easy to weld and form. EN10056 angles meet the European standard EN10056 and are widely recognized by the construction industry.

Quantity:
Availability:





Inquire Add to Basket

Model:
Unequal Angle

EN10056 Structural Steel Unequal Angles are angle-shaped steel sections with two legs of different lengths used in construction. These angles are mainly made of high-strength structural steels and have a rectangular cross section. The dimensions and angles of EN10056 angles meet the European standard EN10056, providing a reference for the dimensions and angles of unequal-leg steel angles. These angles are widely used in building structures, bridge construction, tunnels, mining machinery, and other fields. EN10056 angles have good strength, stiffness, impact resistance, and fatigue resistance, and are also easy to weld and form. The use of EN10056 angles can improve the strength and durability of structures, and ensure the quality and safety of engineering projects.

Angle Steel EN10056 structural steel Unqual leg angles Specification for Unqual leg steel angles Dimensions of Unqual leg steel angles Angles of Unqual leg steel angles Application of Unqual leg steel angles Advantages of EN10056 steel angles Types of Unqual leg steel angles Manufacturing process of Unqual leg steel angles Impact resistance of Unqual leg steel angles

Related Products

400 Series Hot Rolled Lassen U-Shaped Steel Sheet Pile

600 Series Hot Rolled Lassen U-Shaped Steel Sheet Pile

EN 10025 H-Section Beam Steel

High Strength EN 10025-2 DIN 1026-1 EN 10279 S235JR S275JR S355JR UPN Channel Steel

EN10056 Structural Steel Equal Leg Angles

China Hongkun Supply Chain Co., Ltd. is a leading supplier of high-quality steel products based in China. With over 20 years of experience in the industry.

Leave a Message

Quick Links

Contact Us

+86-17610615531

sales@hongkunmetal.com

Room 1402, Building 5, Beichen Building, Beichen District, Tianjin, People's Republic of China

型号 Designation Bezeichnung	理论重量 Unit Weight (kg/m)	截面尺寸 Dimensions Abmessungen (mm)					Sectional





	G	H	B	t	r1	r2	A
L 100 x 65 x 7	877	100	65	7	10	50	11,2
L 100 x 65 x 8	994	100	65	8	10	50	12,7
L 100 x 65 x 9	111	100	65	9	10	50	14,1
L 100 x 65 x 10	123	100	65	10	10	50	15,6
L 100 x 65 x 12	145	100	65	12	10	50	18,5
L 110 x 70 x 10	134	110	70	10	10	50	17,1
L 110 x 70 x 12	159	110	70	12	10	50	20,3
L 120 x 80 x 8	122	120	80	8	11	55	15,5
L 120 x 80 x 10	150	120	80	10	11	55	19,1
L 120 x 80 x 12	178	120	80	12	11	55	22,7
L 125 x 75 x 8	122	125	75	8	11	55	15,5
L 125 x 75 x 9	136	125	75	9	11	55	17,3
L 125 x 75 x 10	150	125	75	10	11	55	19,1
L 125 x 75 x 12	178	125	75	12	11	55	22,7
L 130 x 90 x 10	166	130	90	10	11	50	21,2
L 130 x 90 x 12	197	130	90	12	12	60	25,1
L 130 x 90 x 14	228	130	90	14	11	50	29,0
L 140 x 90 x 8	140	140	90	8	11	55	17,9
L 140 x 90 x 10	174	140	90	10	11	55	22,1
L 140 x 90 x 12	206	140	90	12	11	55	26,3
L 140 x 90 x 14	238	140	90	14	11	55	30,4
L 150 x 75 x 9	154	150	75	9	12	60	19,6
L 150 x 75 x 10	170	150	75	10	12	60	21,7
L 150 x 75 x 11	186	150	75	11	12	60	23,7
L 150 x 75 x 12	202	150	75	12	12	60	25,7
L 150 x 90 x 10	182	150	90	10	12	60	23,2
L 150 x 90 x 11	199	150	90	11	12	60	25,3
L 150 x 90 x 12	216	150	90	12	12	60	27,5
L 150 x 90 x 15	266	150	90	15	12	60	33,9
L 150 x 100 x 10	190	150	100	10	12	60	24,2
L 150 x 100 x 12	225	150	100	12	12	60	28,7
L 150 x 100 x 14	261	150	100	14	12	60	33,2
L 200 x 100 x 10	230	200	100	10	15	75	29,2
L 200 x 100 x 12	273	200	100	12	15	75	34,8
L 200 x 100 x 14	316	200	100	14	15	75	40,3
L 200 x 100 x 15	337	200	100	15	15	75	43,0

型号 Designation Bezeichnung	理论重量 Unit Weight (kg/m)	截面尺寸 Dimensions Abmessungen (mm)					Sectional





	G	H	B	t	r1	r2	A
L 100 x 65 x 7	877	100	65	7	10	50	11,2
L 100 x 65 x 8	994	100	65	8	10	50	12,7
L 100 x 65 x 9	111	100	65	9	10	50	14,1
L 100 x 65 x 10	123	100	65	10	10	50	15,6
L 100 x 65 x 12	145	100	65	12	10	50	18,5
L 110 x 70 x 10	134	110	70	10	10	50	17,1
L 110 x 70 x 12	159	110	70	12	10	50	20,3
L 120 x 80 x 8	122	120	80	8	11	55	15,5
L 120 x 80 x 10	150	120	80	10	11	55	19,1
L 120 x 80 x 12	178	120	80	12	11	55	22,7
L 125 x 75 x 8	122	125	75	8	11	55	15,5
L 125 x 75 x 9	136	125	75	9	11	55	17,3
L 125 x 75 x 10	150	125	75	10	11	55	19,1
L 125 x 75 x 12	178	125	75	12	11	55	22,7
L 130 x 90 x 10	166	130	90	10	11	50	21,2
L 130 x 90 x 12	197	130	90	12	12	60	25,1
L 130 x 90 x 14	228	130	90	14	11	50	29,0
L 140 x 90 x 8	140	140	90	8	11	55	17,9
L 140 x 90 x 10	174	140	90	10	11	55	22,1
L 140 x 90 x 12	206	140	90	12	11	55	26,3
L 140 x 90 x 14	238	140	90	14	11	55	30,4
L 150 x 75 x 9	154	150	75	9	12	60	19,6
L 150 x 75 x 10	170	150	75	10	12	60	21,7
L 150 x 75 x 11	186	150	75	11	12	60	23,7
L 150 x 75 x 12	202	150	75	12	12	60	25,7
L 150 x 90 x 10	182	150	90	10	12	60	23,2
L 150 x 90 x 11	199	150	90	11	12	60	25,3
L 150 x 90 x 12	216	150	90	12	12	60	27,5
L 150 x 90 x 15	266	150	90	15	12	60	33,9
L 150 x 100 x 10	190	150	100	10	12	60	24,2
L 150 x 100 x 12	225	150	100	12	12	60	28,7
L 150 x 100 x 14	261	150	100	14	12	60	33,2
L 200 x 100 x 10	230	200	100	10	15	75	29,2
L 200 x 100 x 12	273	200	100	12	15	75	34,8
L 200 x 100 x 14	316	200	100	14	15	75	40,3
L 200 x 100 x 15	337	200	100	15	15	75	43,0
