| Material: | |
|---|---|
| Technique: | |
| Processing Service: | |
| Surface: | |
| Package: | |
| Standard:: | |
| Application: | |
| Quantity: | |
SPCC, SPCD SPCE, DC01 DC02 DC03 DC04 DC05 ST12
HONGKUN
72119000
Cold-rolled ms steel sheet is a plate obtained by rolling a slab using a rolling mill. The production process includes: first heating the steel billet to a moderate temperature, and then rolling and stretching it. Cold plates have high surface precision, high hardness, and good corrosion resistance. With its exceptional strength and versatility, our steel sheet is ideal for construction, manufacturing, and automotive projects. The cold rolled process ensures a smooth surface finish and enhanced dimensional accuracy, making it easy to work with and providing excellent results. They are usually used to manufacture containers, pipes, etc. CR steel sheets have good processability, with good flatness and excellent surface, are available with different thickness and width combinations; Are mainly used to manufacture the high value-added products in automotive and appliance, beverage packaging, electronic, electrcial moor and building etc.
Cold Rolled Steel Sheet Specification:
| Standard | JIS G3141,DIN1623,EN10130 |
| Material | SPCC, SPCD SPCE,Q195,DC01,DC02,DC03,DC04,ST12 |
| Thickness | 0.10-3 mm |
| Width | 20-1500 mm,Normal width is 914/1000/1219/1250/1500 mm |
| Finish | General, bright, black annealed dull and mirror finish, oiled or non-oiled |
| Length | Regular Or As per the client's request |
| Weight Calculation | Weight(kg)=Thickness(mm)*Width(m)*Length(m)*Density(7.85g/cm3) |
| Packaging | Export standard packing or according to customers' requirement. |
| Certificate | ISO9001:2008,SGS |
| Shipment | Within 7-15 workdays according to the order quantity |
| Available Standards And Grades | |||||
| GB/T5213-2008 | din1623 | EN 10130-2006 | JIS G3141-2005 | ISO 3574-1999 | ASTM A1008M-07 |
| DC01 | ST12 | DC01 | SPCC | CR1 | CS Type C |
| DC03 | ST13 | DC03 | SPCD | CR2 | CS Type A,B |
| DC04 | ST14,ST15 | DC04 | SPCE | CR3 | DS Type A,B |
| DC05 | DC05 | SPCF | CR4 | DDS | |
| DC06 | ST16 | DC06 | SPCG | CR5 | EDDS |
| DC07 | DC07 | - | - | - | |
| Chemical Composition | ||||||
| Name | Chemical Composition | |||||
| C max | Mn max | P max | S max | Alts min | Ti max | |
| DC01 | 0.1 | 0.5 | 0.035 | 0.025 | 0.020 | |
| DC03 | 0.08 | 0.45 | 0.030 | 0.025 | 0.020 | |
| DC04 | 0.08 | 0.40 | 0.025 | 0.020 | 0.020 | |
| DC05 | 0.008 | 0.30 | 0.020 | 0.020 | 0.015 | 0.2 |
| DC06 | 0.008 | 0.30 | 0.020 | 0.020 | 0.015 | 0.2 |
| Mechanical | ||||||
| Name | Yield Strength | Tensile Strength | Elongation After Fracture | |||
| Nominal Thickness | ||||||
| 0.7 | 0.7-1.0 | 1.0-1.6 | 1.6 | |||
| DC01 | 130-260 | 270 | 28 | 30 | 32 | 34 |
| DC03 | 120-240 | 270 | 32 | 34 | 35 | 36 |
| DC04 | 120-210 | 270 | 36 | 38 | 39 | 40 |
| DC05 | 110-190 | 260 | 36 | 38 | 39 | 40 |
| DC06 | 100-180 | 250 | 39 | 40 | 41 | 42 |
| Product Stamping Grade | |
| DC01 | General Use |
| DC03 | Drawing |
| DC04 | deep drawing quality |
| DC05 | extra-deep drawing quality |
| DC06 | super extra-deep drawing quality |

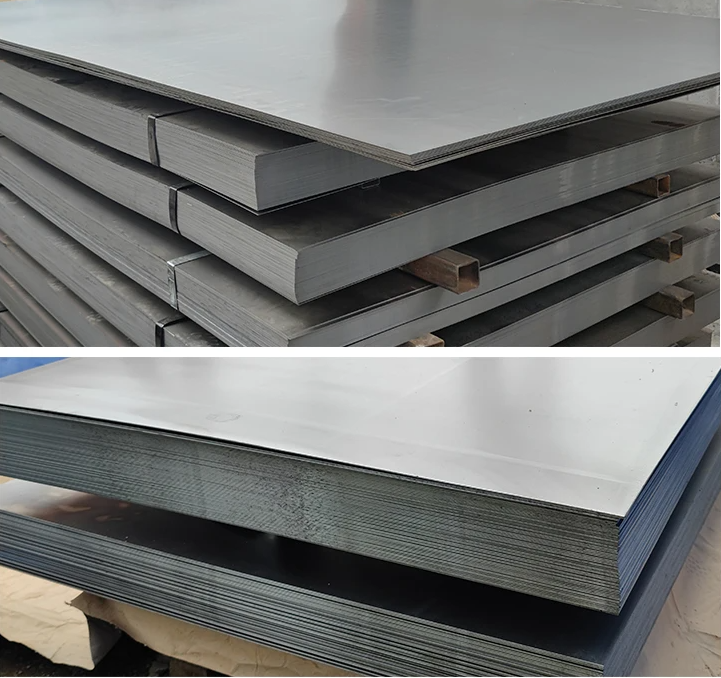

Cold Rolled Steel Plate Detailed Display:
Carbon Steel Cold Rolled Steel Sheet Process:
Carbon steel plates are divided into cold-rolled carbon steel plates and hot-rolled carbon steel plates according to the production process.
Cold-rolled ms steel plate is a plate obtained by rolling a slab using a rolling mill. The production process includes: first heating the steel billet to a moderate temperature, and then rolling and stretching it. Cold plates have high surface precision, high hardness, and good corrosion resistance. They are usually used to manufacture containers, pipes, etc.
MS Cold Rolled Steel Plate Application:
Cold rolled steel sheet has smooth surface, excellent processing,featuring a high resistance to corrosion and wear, our steel sheet guarantees long-lasting performance and reliability. Its superior strength-to-weight ratio allows for efficient material usage, reducing costs without compromising on quality. It is mainly used in automobile, printing iron drum, construction, building materials, bicycles and other industries, but also the production of organic coating steel plate of the best material.
CR Steel Sheet Packing&Shipping:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing:
1. Generally package: Anti-water paper strapped with min three strapping strips.
2. Standard exporting package: Anti-water paper and plastic+covered by iron sheet+ strapped with min three strapping strips.
3. Excellent package: Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strips + fixed on the iron or wooden pallets by strapping strips.
4. Customized packing service.
Shipping:
1. Shipping by containers.
2. Shipping by bulk ship.
Whether you need a sturdy base for heavy machinery or a reliable material for structural components, our Steel Sheet & Plate is the perfect choice. Trust in its exceptional durability and performance to deliver outstanding results for your projects.
Welcome to discussion with us for more details!
